Full Automatic Bottle Shrink Sleeve Labeling Machine
Configuration:

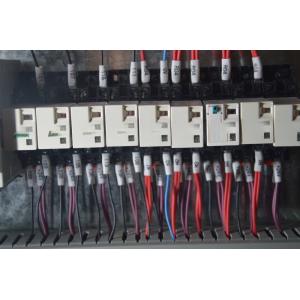

Automatic bottle sleeve labeling machine machine adopts PLC

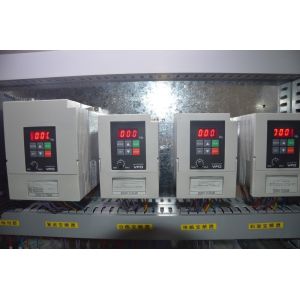

programmable controller, imported servo motor, servo driver, frequency converter and transducer; besides, it adopts the
positioning module to ensure the casting
label precise,rapid and stable. It not only has a highly precise
position for casting label, but also can withstand the perfect shape of the bottle after shrinkage.
Application:
Full automatic bottle sleeve label machine applies to food &
beverage industries as fruit juice, tea,drink, dairy products, pure water, condiments, beer and sports
drink etc. Of all kinds of bottles; It suitable
for various kinds of bottle types, for example: round bottle,
square bottle, flat bottle, curved bottle and cup-shaped, etc. It not only has a highly precise position for
casting label, but also can withstand the
perfect shape of the bottle after shrinkage.
Characteristics:
1. All-cover type stainless steel host machine:the whole machine is
waterproof as well as rustproof.
2. Adjustable cutter head:uniquely cyclotron cut-off, double sided
cutting edge with a long service life.
3. Single positioning center guide pillar:a more stable for label
delivery.
4. Synchronous bottle divider: a more stable transmission for
bottle.
5. Bottom set of label brush:a more precision for casting label.
6. Label-controlling electric-eye shelf:unique combination of tail
and electric-eye to improve the precision for cutting off the membrane materials.

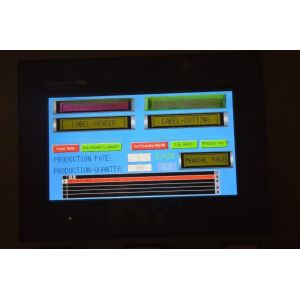

7. Push-button control cabinet:a more humanized operation. 8. Independent feeding material shelf: the position of the material
shelf is optional at will.
Technical parameter:
Input Power | 1.5KW |
Input Voltage | 3, 380/220VAC |
Production Efficiency | 150 Bottle/ min |
Size of Host Machine | L2100mm×W850mm×H2000mm |
Applicable Diameter of Bottle Body | 28mm-125mm |
Applicable length of Label | 30mm-250mm |
Applicable thickness of Label | 0.03mm-0.13mm |
Applicable Internal Diameter of Paper Tube | 5' -10' Free Adjustment |
Our company has rich experience to help customers to establish the
different production lines for different use, for example. we can
arrange technical staff to help customer set up whole production
line for mineral water, pure water,cola, milk, juice and
vinegar,oil, we are profession for making it. If anyone who is
interested in such field wants to buy the whole equipments and
machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you
will see the machine working and running conditon in our factory!
