    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options

    Ask Lasest Price
    Brand Name : NC
    Model Number : LP
    Price : $12,900.00/sets 1-1 sets
    • Product Details
    • Company Profile

    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options

    Product Overview

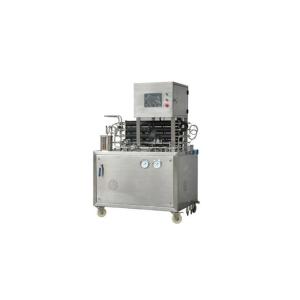

    FOOD SANITARY UHT LAB STERILIZER FOR MILK PROCESSING LINE

    1.Machine Introduction of Pasteurizer Prices :
    This Lab Mini UHT Milk Pasteurizer Prices is manufactured exclusively with advanced design & technologies to meet requirements from universities, institutes, and dairy industry for simulating industrial manufacture and research in laboratory. Rated capacity can be from 3L/h to 150L/h, completely duplicate the industrial production, which is adaptive to wide ranges of viscidity, and be same with preparation of fibers and granules, precisely mimic prepare, homogeniser, aging, pasteurism, fast sterilization under ultra-temperature temperature and aseptic filling. The machine workstation system is integrated with the CIP function online,which can be configured optionally a homogeniser and a aseptic filling cabinet on your needs.
    2.Machine Features of Pasteurizer Prices:
    1). Rated capacity 3L/H~150L/H, lowest sample 3L~5L, handled easily and minimum sample required.
    3). mini uht sterilizer workstation with selected system components ,all major
    4). components are housed within a stainless steel cabinet, as standard two electrically
    5). heated hot water recirculators,no steam required
    6). PLC controller, LCD touch panel control fascia with flow path of system.
    7). Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .
    8). As standard a progressive screw pump(made in Germany) with CIP is used to avoid secondary pollution.
    9). mini uht sterilizer is mobile, and can be positioned in a wet or dry area.
    10). Non-material warning functions.
    11). Computer interface with real time temperature recording ,the trial data can be used for the paper directly with excel file.
    3.Machine Applications of Pasteurizer Prices :
    This mini UHT Milk Pasteurizer Prices is applied for various technology processing:such as homogenizing,pasteurization,high temperature sterilization and ultra high temperature sterilization and so on.It's used for various beverages and similar heat sensitivity liquids,such as milk,juice,condiments,additives,tea drinks and beer etc.
    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options
    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options
    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options
    PRODUCT SPECIFICATIONS
    Power
    13KW 380V 50/60Hz
    Rated Capacity
    20-25L/H
    Max. Heating Temperature
    150°c
    Cooling Temperature
    Normal Temperature OR 5°c(Optional)
    Heating Unit
    Heat Hot Water Recirculators
    Temperature Control
    PID Control
    Heating Precision
    ±0.5°c
    Sterilizing Time
    3s 5s 10s 30s 300s(optional)
    System Pressure
    10Bar
    Sterilize
    SIP An Option For Aseptic Sampling
    Clean
    CIP( 400LPH)
    USB connector
    Yes
    Body material
    SUS304 Stainless Steel
    Material Touch Part
    SUS316L
    Filling System
    Sterile Cabinet(Optional)
    Filtering Membrane
    HEPA (Filter Efficiency 99.99%)
    Jacketed Filling Device
    10L(5L)
    Filling Valve
    Air Operated Filling Device
    Ozone Generating System
    Optional
    Display
    7-Inch LCD Display
    PRODUCT CONFIGURATION
    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options
    STAINLESS STEEL COUPLING WITHOUT DEAD CORNER
    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options
    CAN CONNECT WITH ASEPTIC FILLING MACHINE
    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options
    ASEPTIC FILLING TECHNOLOGY
    SIMILAR PRODUCTS
    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options
    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options
    UHT Sterilizer for Milk Processing Line 15s Holding Tube and 50/60 Hz Frequency Options
