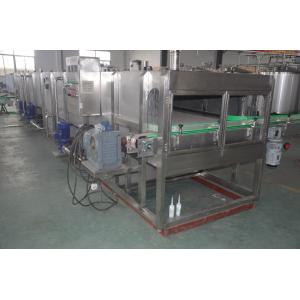

Industrial Use Fruit Jam Jar Cooling Tunnel Pasteurizing Machine
Continuous spray sterilizing machine- this machine is suitable for
fruit juice, tea, dairy beverage.After hot filling and capping ,
into the sterilization tunnel, the temperature rise by heating,
reaching the pasteurization temperature, in the sterilization
tunnel water under high pressure pump, the spray head evenly
sprayed on the bottle body, the bottle slowly forward in the chain
plate, a tunnel to reach room temperature, to achieve cooling
purposes.
Imported the most advanced technology from Germany, Italy, Taiwan .
By circulating hot water preheating, pasteurization, warm water
pre-cooling, cold water-cooled four-part treatment. The machine
adopts the brand-name high temperature polypropylene chain plate,
temperature control with digital temperature control device in
Japan, all imported stainless steel body, stable and reliable
operation, nice appearance
Design requirement |
Material Pasteurizing Temp | / | Inlet Temp | 2℃ -4 ℃ | Outlet Temperature | 35-40℃ |
Packing | Aluminum cans | Process material | Cans |
Product | Carbonated drinks(cola drink) | Dimension of Cans | 250-750ml |
Capacity | 12000 Cans Per hour | Size | 12000×2000 MM(Length× Width) |
Equipment and technical parameter |
Name | Technical parameter | Name | Technical parameter |
Model | NCPL | Total Power | 22 kw |
Material | SUS304 | hot water pump | 3 sets |
Thickness of Material | 3mm | Flow rate of pump | 30 cubic meter Lift:36m |
Thickness of Cover Plate | 2mm | Heating plates | 8m2 2 sets |
Conveyor | High temp. resistance; Both the inlet and outlet hole with 3 meters
conveyor ;the conveyor adopts transducer to adjust its speed;0.75kw(new design) ;0.45
meters/m Area of Conveyor: 45 Square Meter; | steam filter | 3 sets |
Main drive | adopts large torques low speed reduction gear | water filter | 3 Sets |
Temperature control system | Accurate, could guarantee the quality of pasteurization. The temperature
changes is below ±1℃. | steam adjust valve | φ40, 2 pcs |
Main link-plate | high plastic plate, 16×1.8m | steam drain valve | φ32, 3 pcs |
sprockets | 16 pcs | manual adjust valve | φ50, 6pcs |
nozzle | 600 pcs, high temperature resistance | pressure gauge | 10pcs |
Stepless speed changing main motor | 1 set | Manhole | 4pcs |
FAQ
Q: Are you a manufacturer?
Yes,we're a genuine manufactuer
Q: Where's your factory located?
We're near Shanghai Pudong International Airport,about about twenty
minutes
Q:Can I see the machine first and then confirm the order?
The answer is definately yes,seeing is believing,we suggest all
customer see the machine quality before confirm order
Q: Our country power use is different with your country? is it
customized?
Normally,we confirm the clients before starting the machine,like
the voltage/herz/phase
Q: Which kind of payment do you accept?
We accept T/T, L/C, Money Gram,Western Union,Cash
Our company has rich experience to help customers to establish the
different production lines for different use, for example. we can
arrange technical staff to help customer set up whole production
line for mineral water, pure water,cola, milk, juice and
vinegar,oil, we are profession for making it. If anyone who is
interested in such field wants to buy the whole equipments and
machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you
will see the machine working and running conditon in our factory!
